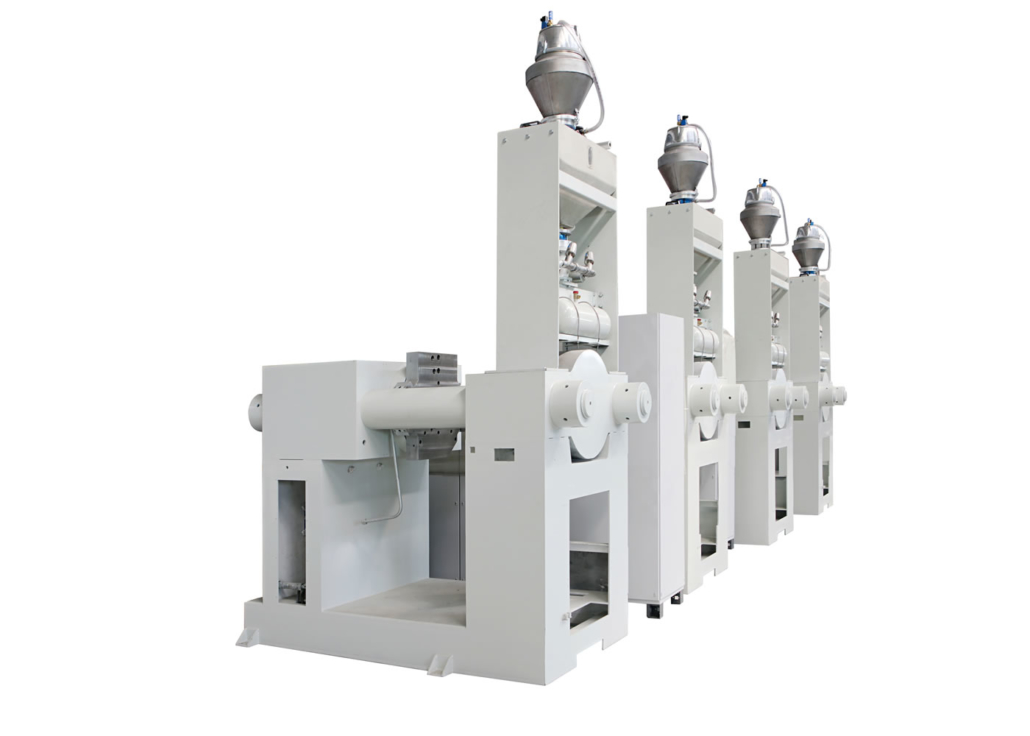

Porcelain Isostatic Pres
| PRESS NG-IP-400/12 | PRESS NG-IP-400/12 | PRESS NG-IP-400/12 | PRESS NG-IP-400/12 | ||
|---|---|---|---|---|---|
| Head Number | 1 | 1 | 1 | 1 | |
| Diameter Of Pressing Piece | mm | 360 | 360 | 465 | 465 |
| Article Diameter After Firing | mm | 320 | 320 | 420 | 420 |
| Height Of Pressing Piece | mm | 90 | 110 | 90 | 130 |
| Output Of Piece Number | pieces/h | 330-450 | 300-450 | 330-450 | 330-450 |
| Closing Power | mN | 3,8 | 3,8 | 6,8 | 6,8 |
| Isostatic Pressure | bar | 258 | 285 | 300 | 300 |
| Stroke Of Press | mm | 160-200 | 160-200 | 160-200 | 160-200 |
| Electrical Power | kW | 26 | 26 | 26 | 26 |
| Necessary Cooling Water (max. 25 °C / Aprox 2 bar) | m³/h | 0,8 | 0,8 | 1,7 | 1,7 |
| Necessary Air Pressure (min. 6 bar) | Nm³/h | 32 | 32 | 92 | 92 |
| Oil Tank Volume | lt | 400 | 400 | 800 | 800 |
| Sound Level (Aprox 1m) | db | 70 | 70 | 65 | 65 |
| Weight | kg | 10500 | 11500 | 19500 | 20200 |

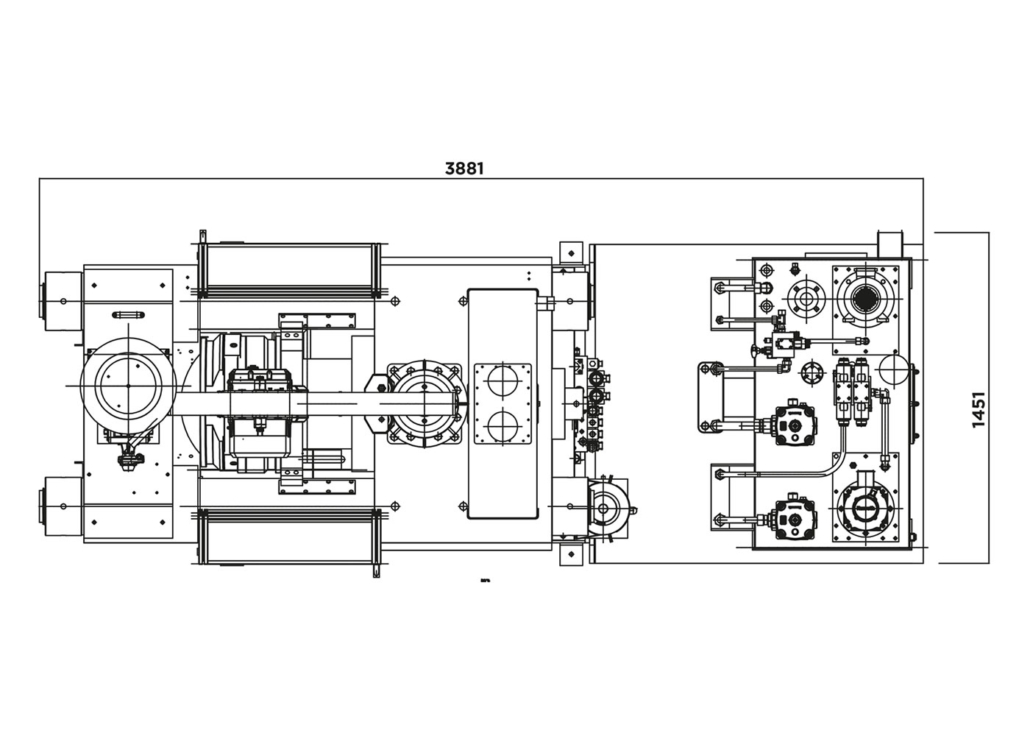

| Dimensions | mm | 4805x1460x3820 | 5005x1460x3820 | 4805x2136x3820 | 5005x2136x3820 |
